9000 lbs. 2 Post Lift Overhead AL-90RH 220v
$ 1,230
$ 2,199
Aston® 9000 lbs 2-Post Overhead Lift - AL-90RH (220V)
Professional Automotive Lift Solution
The Aston® AL-90RH is a robust 9,000 lb capacity two-post overhead lift designed for professional automotive shops and serious enthusiasts. Featuring an overhead cable design and single-point lock release system, this lift delivers reliable performance for daily vehicle service.
Key Features
- 9,000 lb lifting capacity - handles most cars, trucks, and SUVs
- Overhead cable design for clear floor space and easier positioning

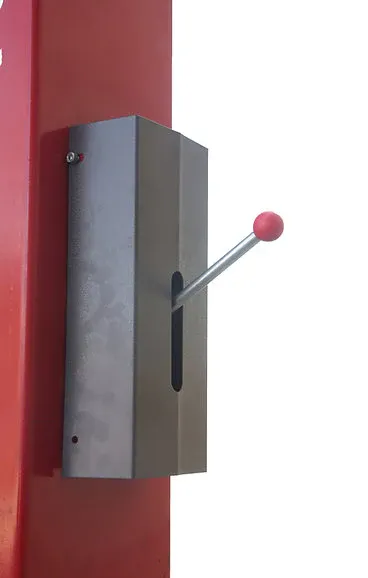

- Single point lock release for efficient operation
- 72" maximum lifting height (with adapters) for excellent undercarriage access
- Heavy-duty steel construction with corrosion-resistant powder coating

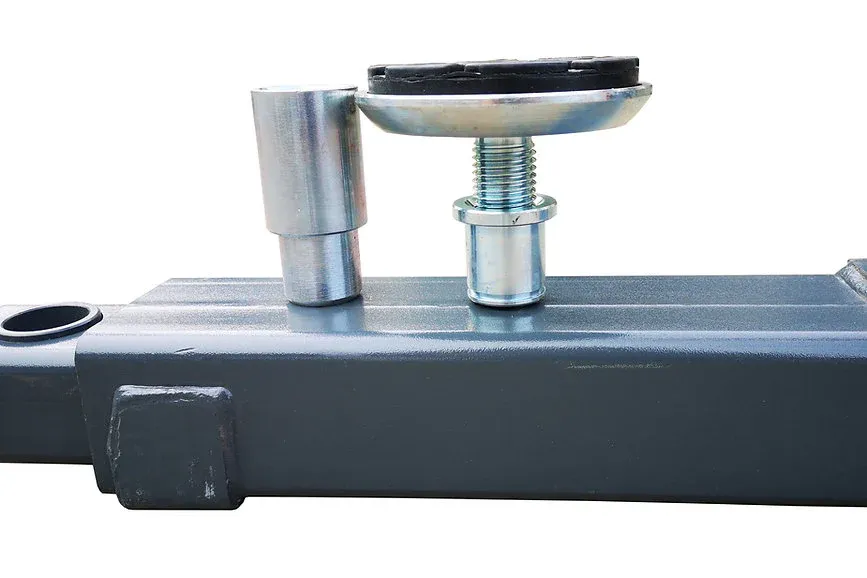

- Low-profile arms (3.25" height) for easy vehicle clearance

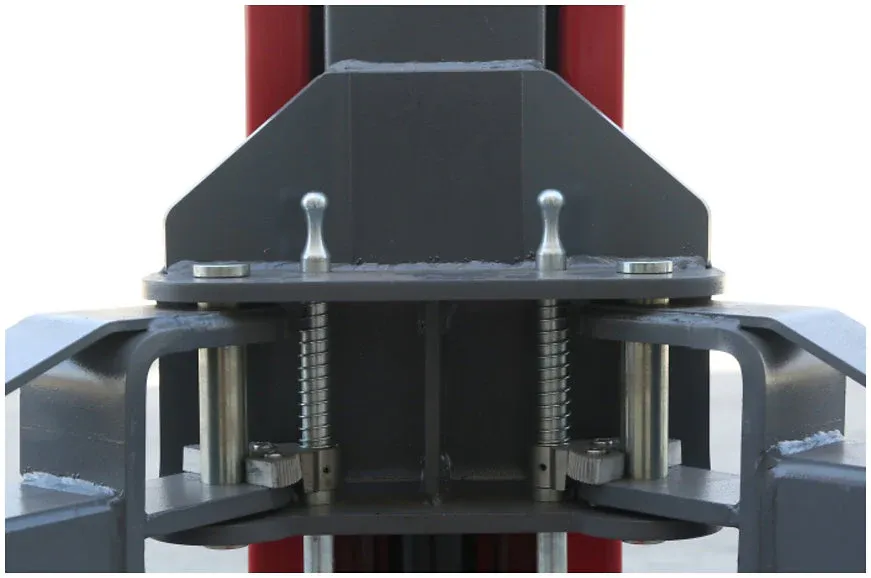

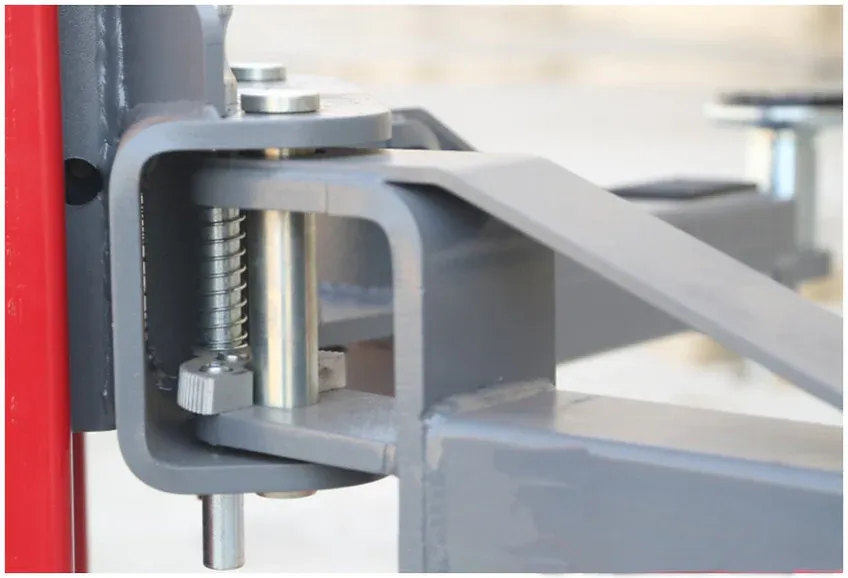

- Automatic mechanical safety locks at multiple positions
- 220V single-phase operation for reliable power
- Meets ANSI/ALI safety standards for professional use
- Includes truck adapters for versatile applications

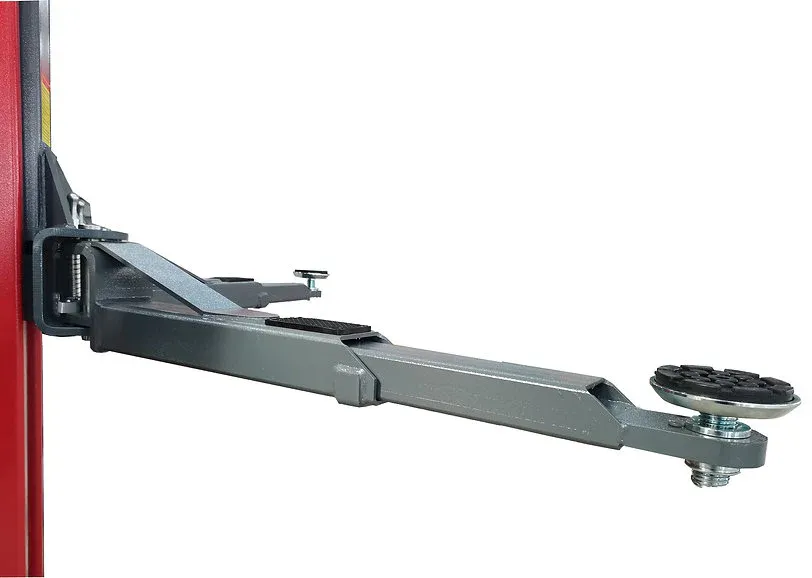

- Asymmetric arm configuration for easier door access
- 3.0HP hydraulic system for smooth, quick lifting
Product Overview
The Aston® AL-90RH overhead 2-post lift combines professional-grade construction with user-friendly features. The overhead cable system keeps the floor clear of obstructions while providing excellent lifting stability. Designed for daily use in busy automotive shops, this lift features durable components and safety systems to withstand rigorous professional demands.
Advanced Design Features
- Reinforced overhead beam for superior structural integrity
- Precision-engineered cables and sheaves for smooth operation

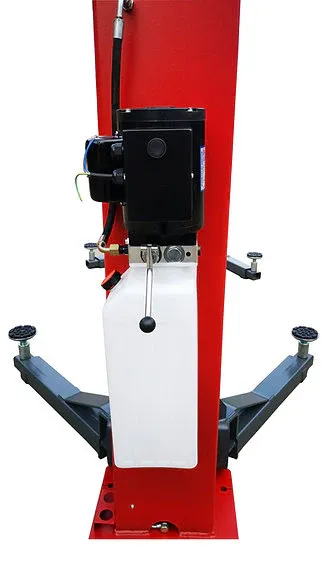

- Industrial-grade hydraulic pump with 3.0HP motor
- Powder-coated finish resists chemicals and wear
- Extra-wide base plates (24" x 24") for stability
- Clear floor design allows for alignment work and easy cleaning
Technical Specifications
ManufacturerModel NumberLift TypeRated CapacityMaximum Lift HeightMinimum HeightArm ReachPost HeightBaseplate DimensionsPower RequirementsHydraulic SystemOverall WeightColorCertifications
| Aston Technologies® |
| AL-90RH |
| 2-Post Overhead (Asymmetric) |
| 9,000 lbs |
| 72 inches (with adapters) |
| 4.5 inches |
| 26-50 inches (adjustable) |
| 144 inches |
| 24" x 24" |
| 220V Single Phase, 20A |
| 3.0HP Motor, 3.0 GPM Pump |
| 2,200 lbs |
| Black with Red Accents |
| ANSI/ALI Certified |
Package Contents
- Two steel upright columns with overhead beam
- Hydraulic power unit with 3.0HP motor
- Four adjustable lifting arms
- Set of rubber lifting pads
- Truck adapters (pair)
- Complete hardware installation kit
- Detailed installation manual
- Operation and maintenance guide
- Safety certification documents
Installation Requirements
Professional installation strongly recommended. Proper installation is critical for safe operation and warranty validation.
- Concrete Requirements: Minimum 4" thickness, 3,500 psi compressive strength
- Ceiling Height: Minimum 12 feet recommended
- Electrical: 220V single phase, 20A dedicated circuit
- Space Requirements: Minimum 12' width between posts, 18' depth recommended
- Anchoring: Requires 3/4" diameter anchor bolts (not included)
Return Policy
- 30-day return period from delivery date
- 20% restocking fee applies to returns
- Customer responsible for return shipping costs
- Product must be in original, unused condition
Safety Information
Warning: Improper use or installation of this lift can result in serious injury or death. Always follow manufacturer guidelines and safety procedures.
- Never exceed the rated 9,000 lb capacity
- Always verify safety locks are engaged before working under vehicle
- Perform pre-operation safety checks daily
- Maintain proper vehicle balance during lifting
- Keep all body parts clear during lift operation
- Inspect cables, hoses, and structural components regularly
- Only operate on level concrete meeting specifications
- Use additional safety stands when required
Warranty Coverage
Aston Technologies® provides comprehensive warranty protection:
- Structural Components: 3 years
- Hydraulic System: 1 year
- Electrical Components: 1 year
- Wear Items: 90 days
Warranty requires professional installation and proper maintenance. Does not cover damage from misuse, improper installation, or normal wear.
