Atlas 412A 12,000 lb 4-Post Alignment Lift
$ 2,449
$ 4,849
Atlas® 412A 12,000 lb 4-Post Alignment Lift
Availability: In Stock
Free Shipping: Yes
Features & Benefits
- 12,000 lbs lifting capacity
- Heavy-duty, commercial-grade construction

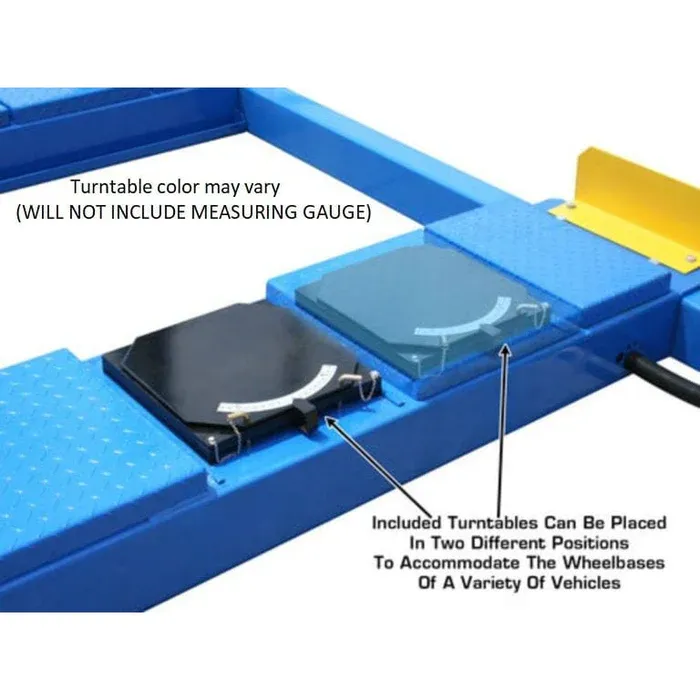

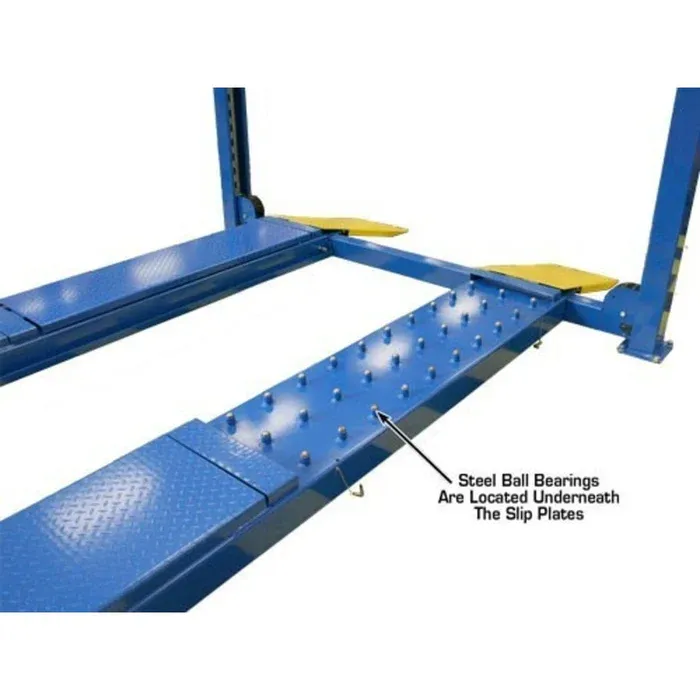

- Built-in slip plates and alignment turntables
- Multiple positions for turntable placement
- Runway covers included when turntables are removed

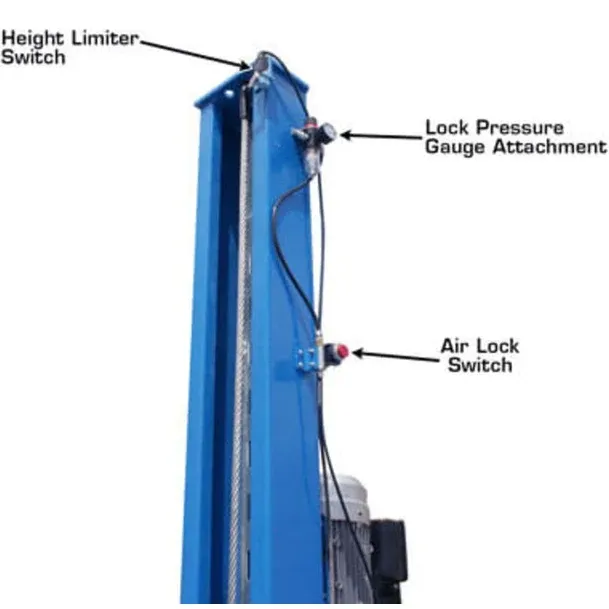

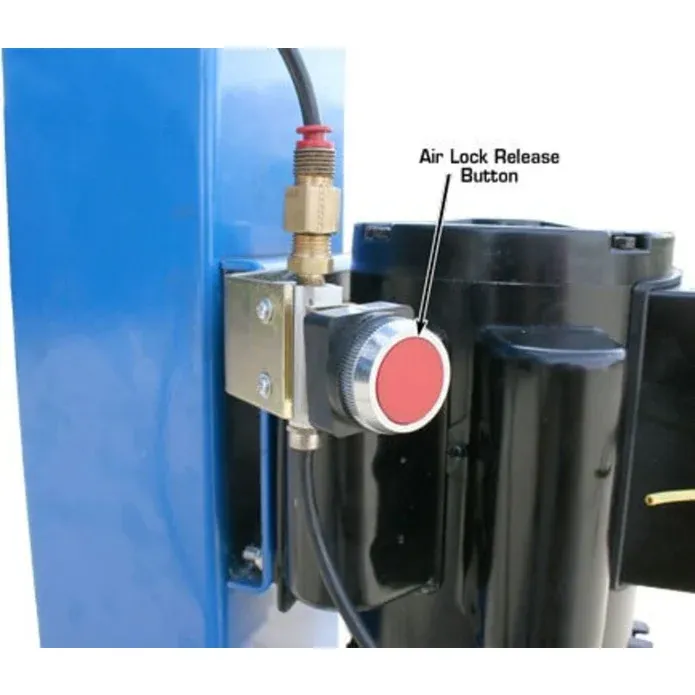

- Air-operated single-point lock release (external air supply required)

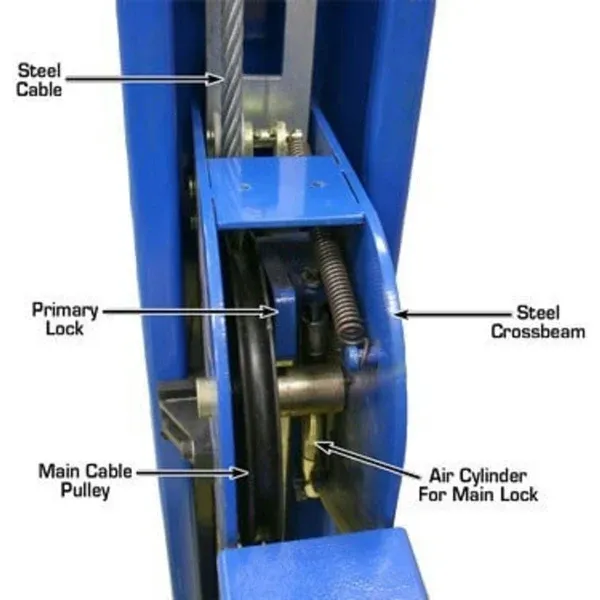

- Lock ladder design with double lock safety system
- Powder coat finish for durability

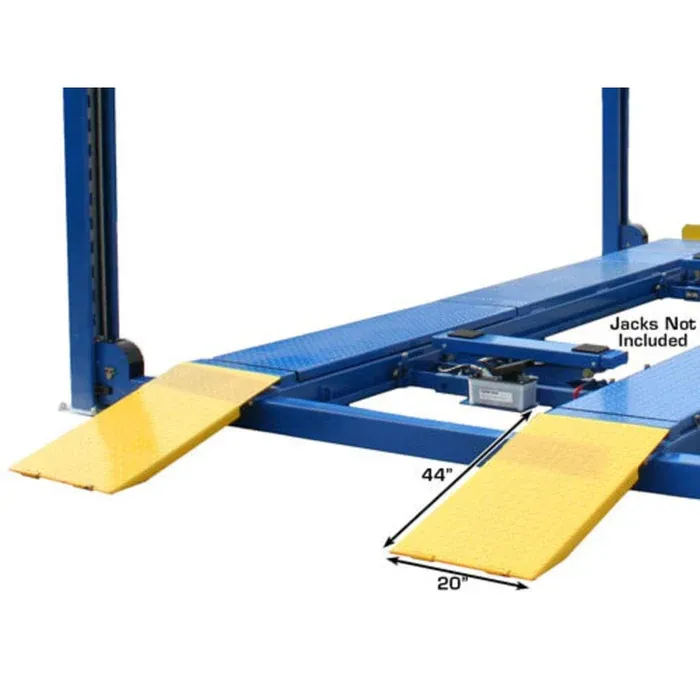

- Steel approach ramps included
- Additional drive-off ramps and runway extensions available (sold separately)
- Mounting hardware included

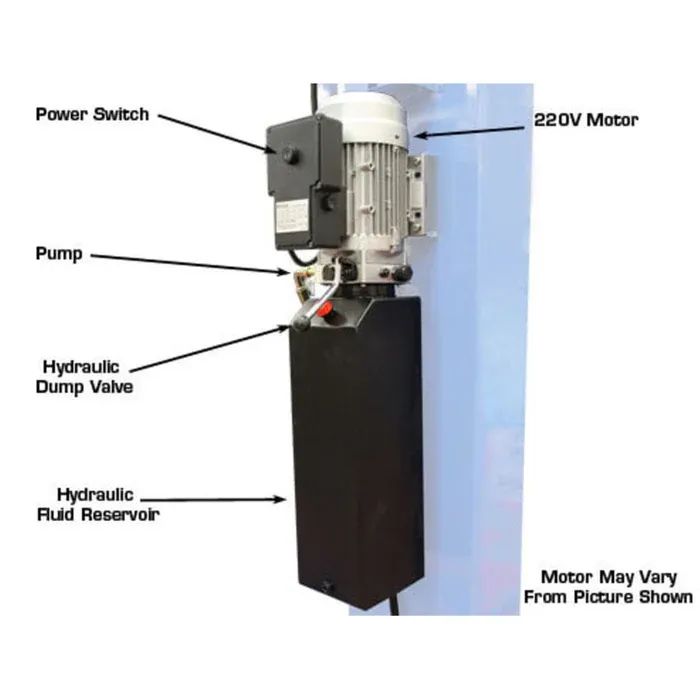

- 220V single-phase electric operation (requires a 30-amp breaker)
- 5-year structural and 2-year hydraulic warranty (parts only)
Specifications
SpecificationDetails
| Capacity | 12,000 lbs |
| Lifting Height | 77 3/4" (6' 5 3/4") |

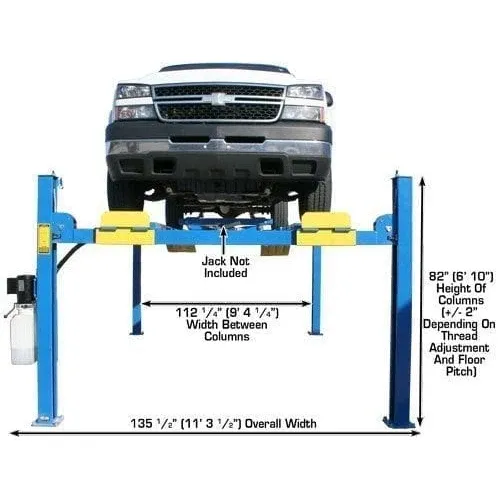

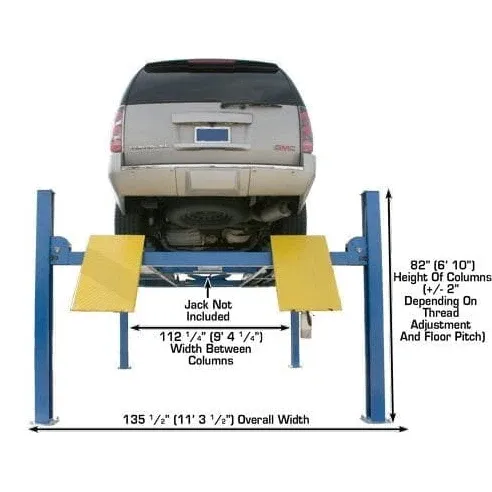

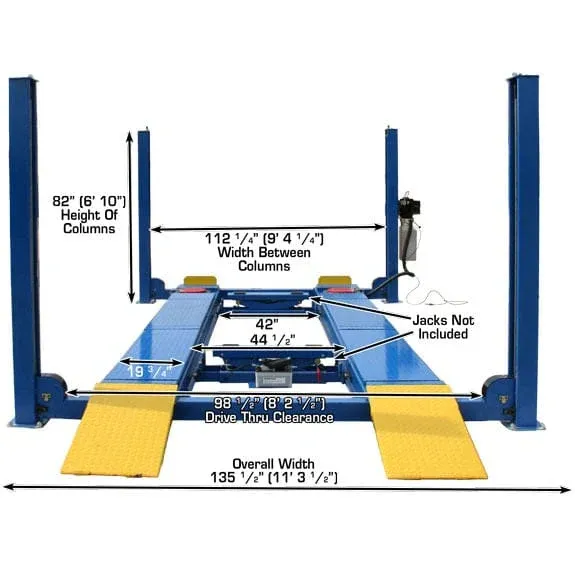

| Overall Width (Without Motor) | 126 1/4" (10' 6 1/4") |
| Overall Width (With Motor) | 135 1/4" (11' 3 1/4") |
| Overall Length with Approach Ramp | 236 1/2" (19' 8 1/2") |
| Length Between Columns | 183 1/4" (15' 3 1/4") |
| Runway Length | 194 1/2" (16' 2 1/2") |
| Runway Width | 20" |
| Thickness of Runway | 7 1/2" |
| Width Between Runways | 43 1/4" (with rail 39 3/4") |
| Outside Runway to Outside Runway | 83 1/4" (6' 11 1/4") |

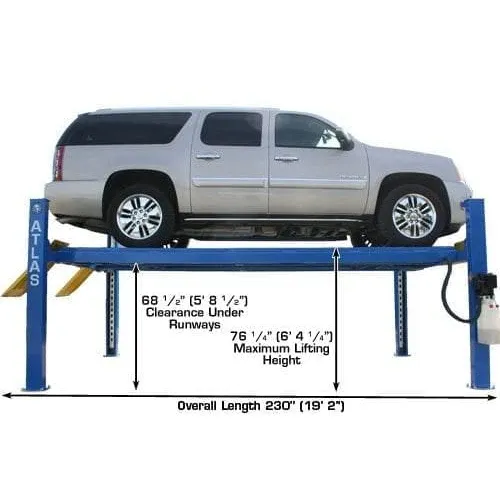

| Clearance Under Runways | 70 1/4" (5' 10 1/4") |

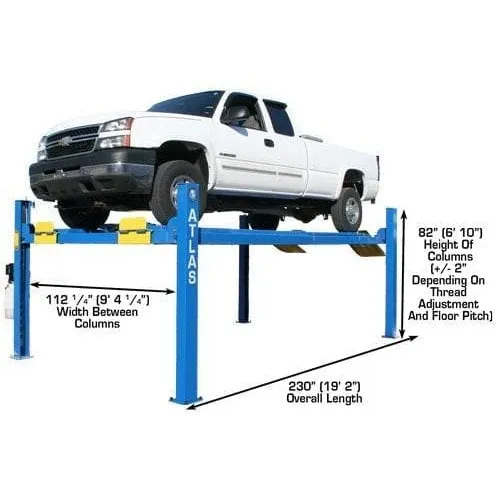

| Clearance Between Columns | 112 5/8" (9' 4 5/8") |
| Height of Columns | 89 3/4" (7' 5 3/4") |

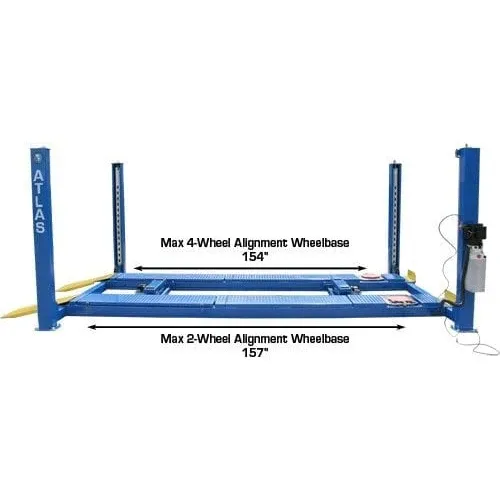

| Maximum Wheelbase | 185" (15' 5") |
| Drive Thru | 98" (8' 2") |
| Air Requirement | 85-115 PSI (external air supply required) |
| Motor/Electrical Requirement | 220V single-phase (30-amp breaker recommended) |
| Oil Requirement | 3-5 gallons AW32/AW46 (not included) |
| Shipping Weight | 2,900 lbs |
| Concrete Requirement | Minimum 6" thickness with 3,000 PSI rating |
Warranty
5-year structural and 2-year hydraulic warranty (parts only)
